15U 19" 600*450/600 WS4 Wall Mount Network Cabinet Static loading 100kg with glass door

Informazioni di base
Luogo di origine: Cina
Marca: LE or OEM
Certificazione: CE/ROHS
Numero di modello: WS4
Quantità di ordine minimo: 5 pezzi
Prezzo: USD 45-89
Imballaggi particolari: imballaggio assemblato/smontato
Tempi di consegna: entro 4 settimane
Termini di pagamento: L/C, D/A, Western Union, paypal
Capacità di alimentazione: 1000 pezzi / settimana
Colore: Ral9004; Ral9005; Ral7035 Materiale: Acciaio laminato a freddo di qualità SPCC
Nome del prodotto: Armadio di rete per montaggio a parete 15U 19" 600*450/600 WS4 Altezza: 15U
Capacità di caricamento: 100 kg Grado di protezione: IP20
Profondità: 450/600mm Spessore di Matrtial: Montaggio del profilo: 1.5mm, altri: 1.2mm
Tipo: Governo della rete del supporto della parete
Evidenziare:

15U wall mount server rack

,

19 inch network cabinet with glass door

,

600mm wide server rack 100kg load

15U 19" 600*450/600 WS4 Wall Mount Network Cabinet Static loading 100kg with glass door 0

Material SPCC quality cold rolled steel
Thickness: 1.2mm
Tempered glass Thickness:5mm
Loading Capacity Static loading: 100kg
Degree of protection IP20
Surface finish Degreasing,Pickling,Phosphating,Powder Coated
Product specification 15U
Width 600mm
Depth 450mm,600mm
Color Ral9004; Ral9005; Ral7035



Modular Wall-Mount Enclosure: Strength, Simplicity, and Serviceability.

This versatile single-section cabinet is engineered for easy deployment and reliable performance. Its unassembled, reinforced steel frame accommodates standard 19" equipment and is designed for flat-pack shipping to minimize logistics costs and space.

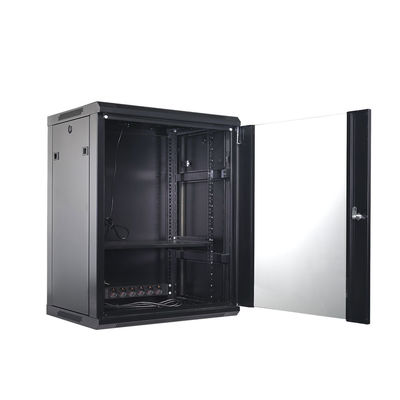

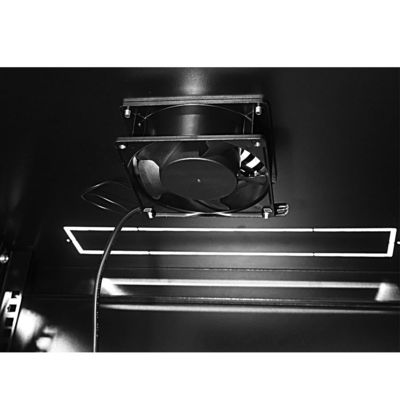

Effortless Access & Superior Cooling: Features include a 5mm tempered glass front door that swings open over 180 degrees for full access, and a removable side panel for easy maintenance. Pre-cut openings at the top facilitate fan installation to ensure optimal airflow for your critical equipment.

Flexible Installation & Cable Management: Pre-drilled L-shaped mounting profiles allow for tool-free adjustment of mounting rails. The enclosure offers convenient top and bottom cable entries and includes a back panel with four mounting holes for secure wall attachment. With a maximum static load of 100kg, it is ready for a variety of accessory options to meet your specific needs.

15U 19" 600*450/600 WS4 Wall Mount Network Cabinet Static loading 100kg with glass door 1

15U 19" 600*450/600 WS4 Wall Mount Network Cabinet Static loading 100kg with glass door 2

      Ningbo Latitude International Trade Co., Ltd. is a manufacturer specializing in the production of server cabinets, network cabinets, outdoor cabinets, wall cabinets and other communication equipment. Over the years, we have been committed to the research and development, design and manufacture of indoor and outdoor cabinet products.

15U 19" 600*450/600 WS4 Wall Mount Network Cabinet Static loading 100kg with glass door 3

Our Advantages

1.Germany WAGNER laser cutting machine and car painting equipment, higher efficiency.

2. There are 5 layers of imported Meika corrugated cardboard outside the carton, which are glued to prevent scratches and protected more carefully.

3. Professional container loading team, make full use of space, avoid shaking and save your transportation cost.

4. The on-time delivery rate is over 95%.



15U 19" 600*450/600 WS4 Wall Mount Network Cabinet Static loading 100kg with glass door 4

15U 19" 600*450/600 WS4 Wall Mount Network Cabinet Static loading 100kg with glass door 5

1. Q: Are you a factory or trading company?

A: We are a Factory, Distributor and Trading Company.

2. Q: Where is your factory located? How can I visit there?

A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or

Shanghai airport, from home or abroad, are warmly welcome to visit us!

3. Q: Can you do OEM?

A: Yes, we can do OEM products. It's no problem.

4. Q: How can I get some samples?

A: We are honored to offer you samples.

5. Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling for to the every

end. Our factory has gained CE,ROHS,SGS authentication.
